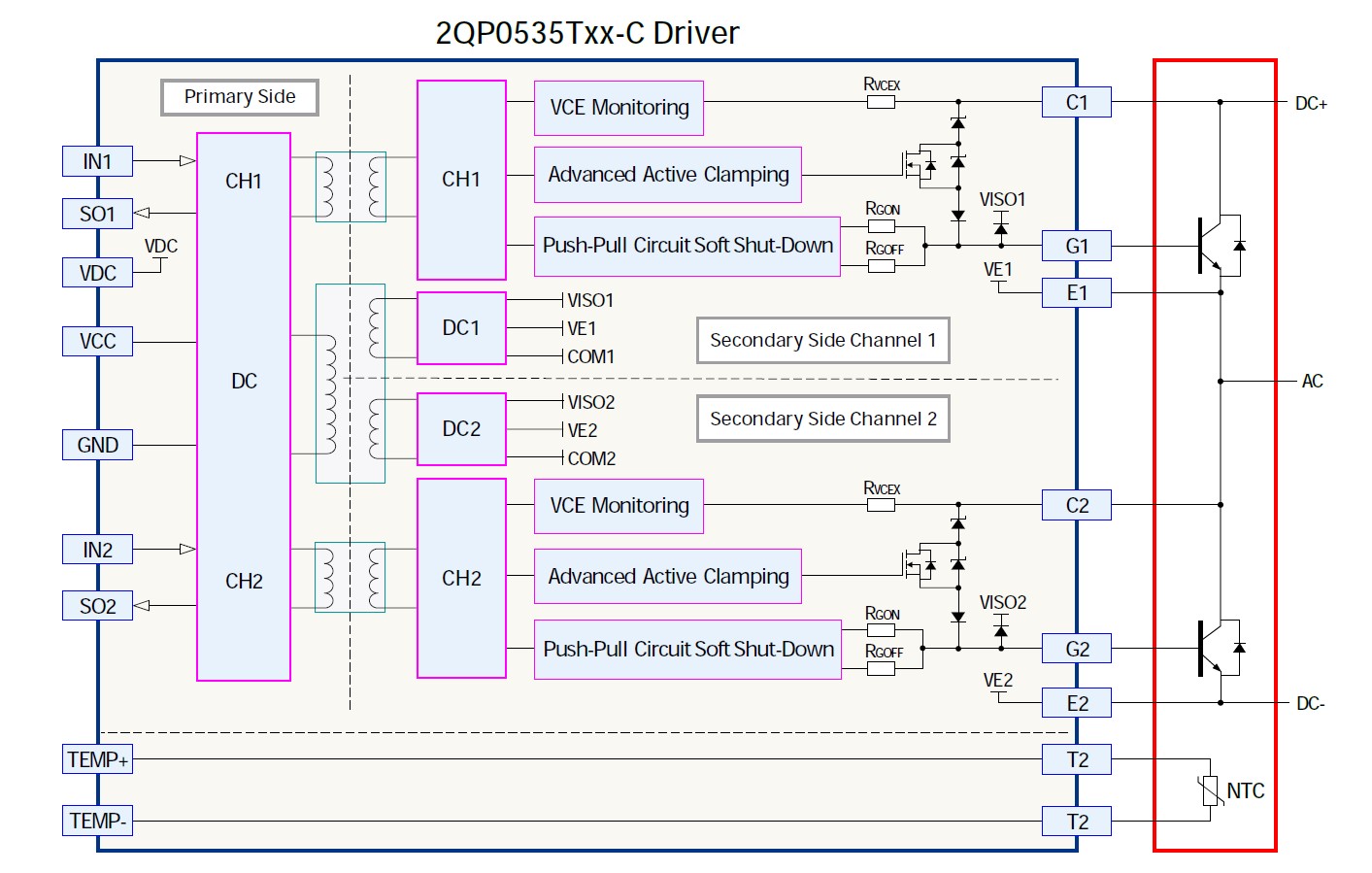

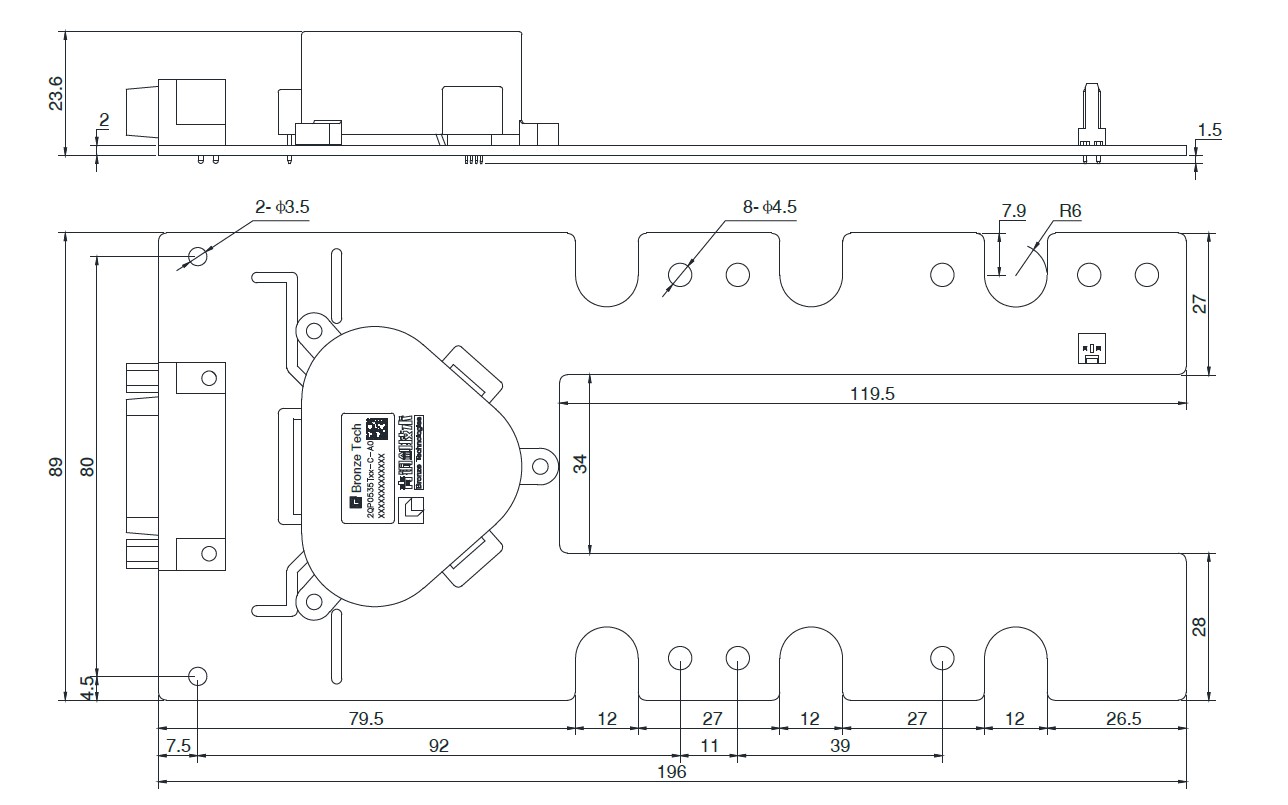

2QP0535Txxx-C is a dual-channel high insulation level and high reliability driver based on self-developed ASIC chip, which is designed for high-power medium-voltage field with high reliability.
2QP0535Txx-C driver is suitable for a variety of topology schemes built by PrimePACK™3+ packaged 1700V or 2300V IGBT modules, which can be directly installed on the IGBT without switching processing.
Wind power converter |
Photovoltaic inverter |
High power switching power supply |
Motor drive |
Traction drive |
2300V PrimePack™3+ package plug-and-play IGBT driver |
20PIN card-edge or DB15 connector optional |
±35A peak current per channel, 5W output |
Integrated isolated DC/DC power |
Primary/secondary power undervoltage lockout |
Dynamic advanced active clamping |
VCE short-circuit protection |
Soft shutdown |
8000Vac isolation voltage |
| Maximum Voltage of Power Device | 2300V | Maximum Switching Frequency | 10kHz |
| Turn-ON Voltage | 15V | Turn-OFF Voltage | -10V |
| Driving Power | 5W | Gate Driving Current | ±35A |
| Power Supply Voltage | 15V | Maximum Supply Current | -mA |
| Operating Temperature | -40~+85℃ | Primary and Secondary Side Insulation Voltage | 8000Vac |
