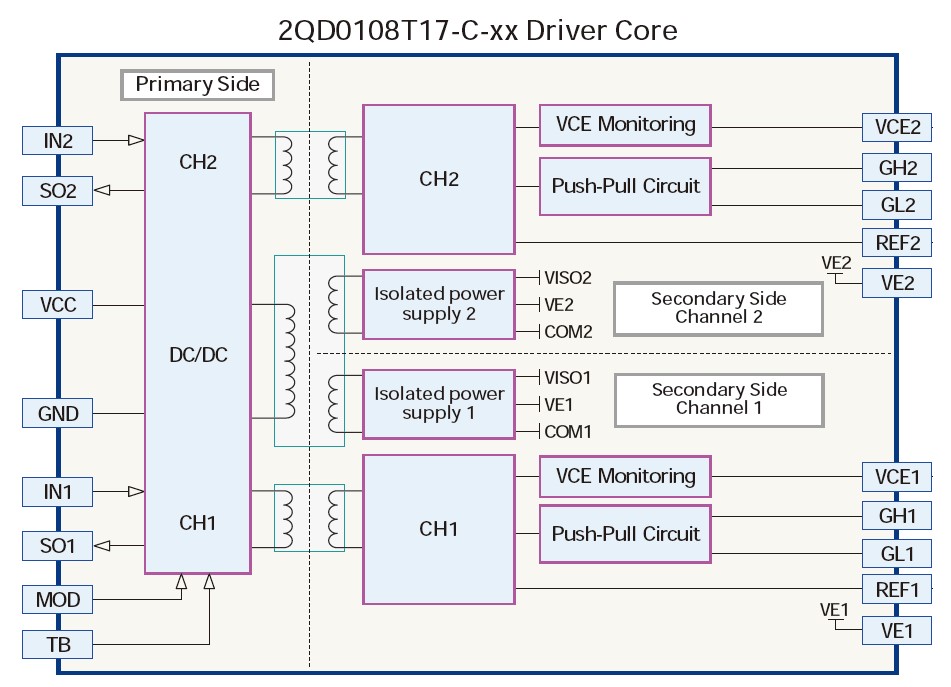

2QD0108T17-C-xx is a medium power, dual-channel compact gate driver core designed for high reliability applications based on the ASIC chipset developed by Bronze Technologies.
2QD0108T17-C-xx can be used for IGBT modules with a blocking voltage up to 1700V. It can be applied to various topologies by adding proper peripheral circuitry.
Engergy storage converters |
PV inverters |
Motor Drives |
SMPS |
Induction Heating |
Dual-channel IGBT gate driver core |
Blocking voltage up to 1700V |
Peak current ±8A, 1W output power per channel |
Up to 6000V isolation voltage |
Direct/half-bridge mode available |
Primary/secondary side undervoltage lockout |
IGBT short-circuit protection integrated |
Soft shut down integrated |
| Maximum Voltage of Power Device | 1700V | Maximum Switching Frequency | 50kHz |
| Turn-ON Voltage | 15V | Turn-OFF Voltage | -9.5V |
| Driving Power | 1W | Gate Driving Current | ±8A |
| Power Supply Voltage | 15V | Maximum Supply Current | 360mA |
| Operating Temperature | -40~+85℃ | Primary and Secondary Side insulation Voltage | 6000Vac |
